SumIndexFields and SQL Server In Navision

SumIndexFields and SQL Server
When you add SumIndexFields to a key in Navision table, Navision will create additional table in SQL Server, which is known as SIFT table to store the pre-calculated value for the SumIndexFields. SIFT table is a term used in Navision. In fact, the SIFT table is just an ordinary table in SQL Server. The SIFT table is named with the following naming convention:

The internal id always starts with zero and increases by one for any additional key that contains SumIndexFields.
For example, G/L Entry table in Navision has four keys with SumIndexFields. This will causes Navision to create four table in SQL Server.

Cronus$17$0

Cronus$17$1

Cronus$17$2

Cronus$17$3



If order for Navision to maintain a SIFT table for a key, the key must meet the following 3 criterias:

1) Enabled

2) Contains SumIndexFields

3) MaintainSIFTIndex is selected

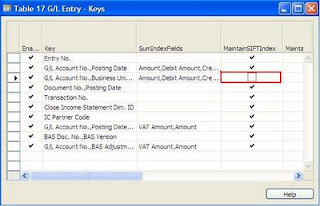

If either one of these criterias is not met, Navision will not maintain a SIFT table for the key. Now, let's do a very quick experiment. I am going to disable the MaintainSIFTIndex option for the 2nd SIFTIndex key and see what will happens to the SIFT tables in SQL Server.

Once I disabled the MaintainSIFTIndex option and save the table, one SIFT table has been removed from the SQL Server.



Please note that I diabled the MaintainSIFTIndex option for the 2nd SIFTIndex key but the SIFT Table that removed by Navision is Cronus$17$3, which was originally the SIFT table for the 4th SIFTIndex key. This shows that the internal id in the SIFT Table naming will always in sequence. Let's have a look at the SIFT table's structure that I captured before and after disabling the MaintainSIFTIndex option.


Cronus$17$1 and Cronus$17$2 before disabling MaintainSIFTIndex option

Cronus$17$1 and Cronus$17$2 after disabling MaintainSIFTIndex option

After disabling the 2nd SIFTIndex key, SIFT Tabel for the 2nd SIFTIndex key has been removed. The 3rd SIFTIndex key has been created as Cronus$17$1 while the 4th SIFTIndex key has been created as Cronus$17$2. I am not sure whether Navision has recreated the SIFT tables or just rename them.

SIFT helps in returning summed values very fast but it will slow down data insertion and modification. Whenever you do an INSERT, UPDATE or DELETE on tables with MaintainSIFTIndex enabled, Navision (more specifically, triggers in SQL Server table) will need to update the SIFT tables. This will add a lot of overhead to the server, which will cause slowdown the server performance. If you disable the MaintainSIFTIndex option, Navision will not give you error. If the MaintainSIFTIndex option is not enabled, Navision will calculate the value from the source table with the SELECT SUM sql statement. You system will still work. So, how ? Is that means we cannot enable the MaintainSIFTIndex option in Navision SQL Server Option ?
The answer is No. To get the maximum benefits from the SIFT technology, you can to enable the MaintainSIFTIndex selectively. Using SIFT tables can improve response time significantly on source tables that contain many records. However, on tables with not many records, the response time is similar as you are calculating it from the source table. As a general rules of thumb, do not maintain SIFT Indexes on small tables and temporary tables (eg. Sales Line, Purchase Line, Warehouse Activity Line, etc.) because it is not worth the additional overhead to maintain the SIFT tables but not getting significant performance improvement on small tables.
